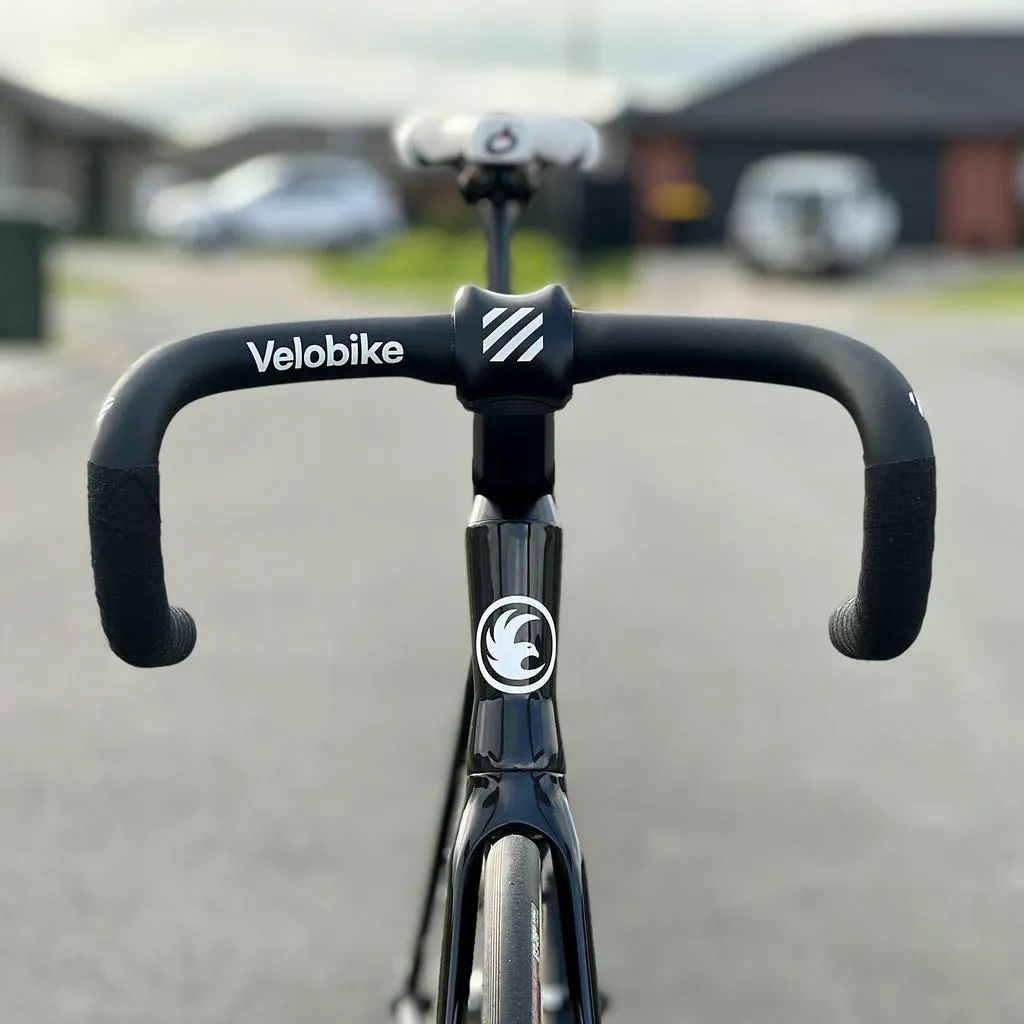

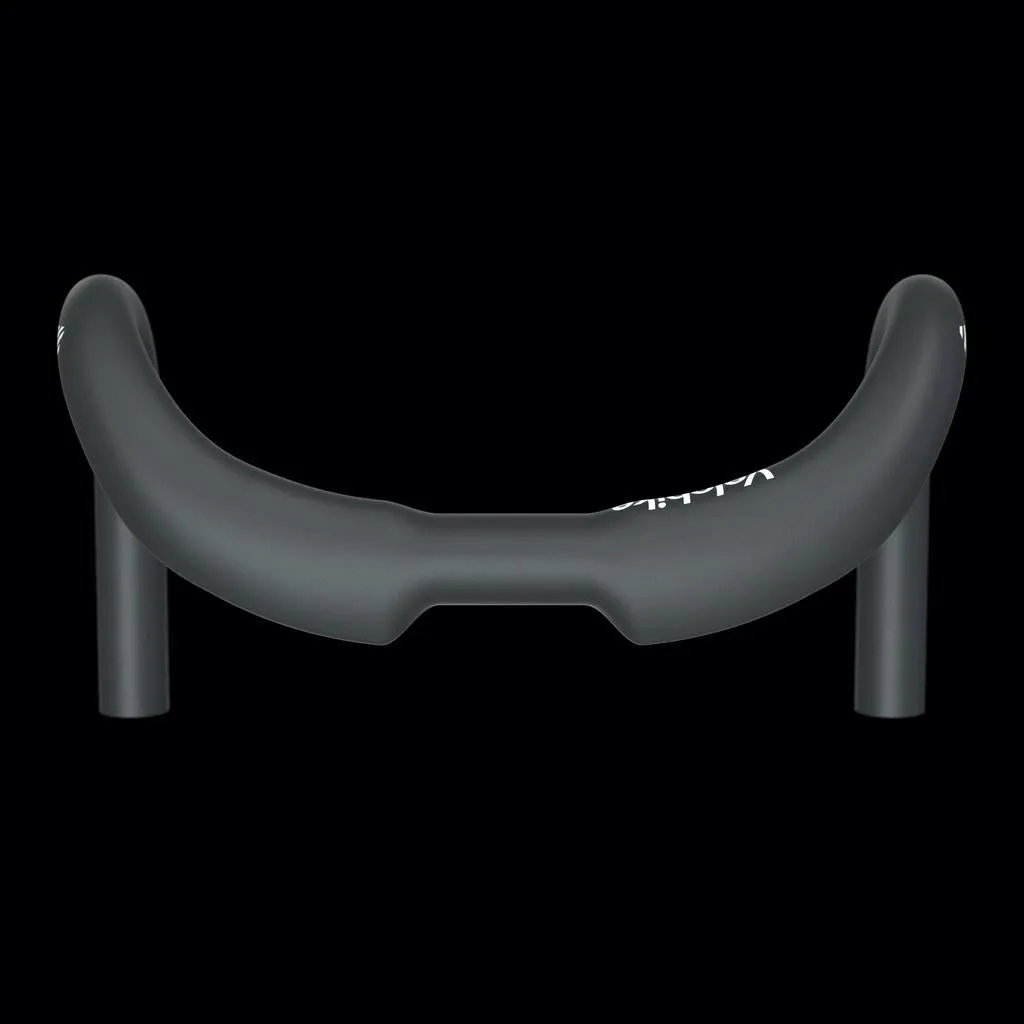

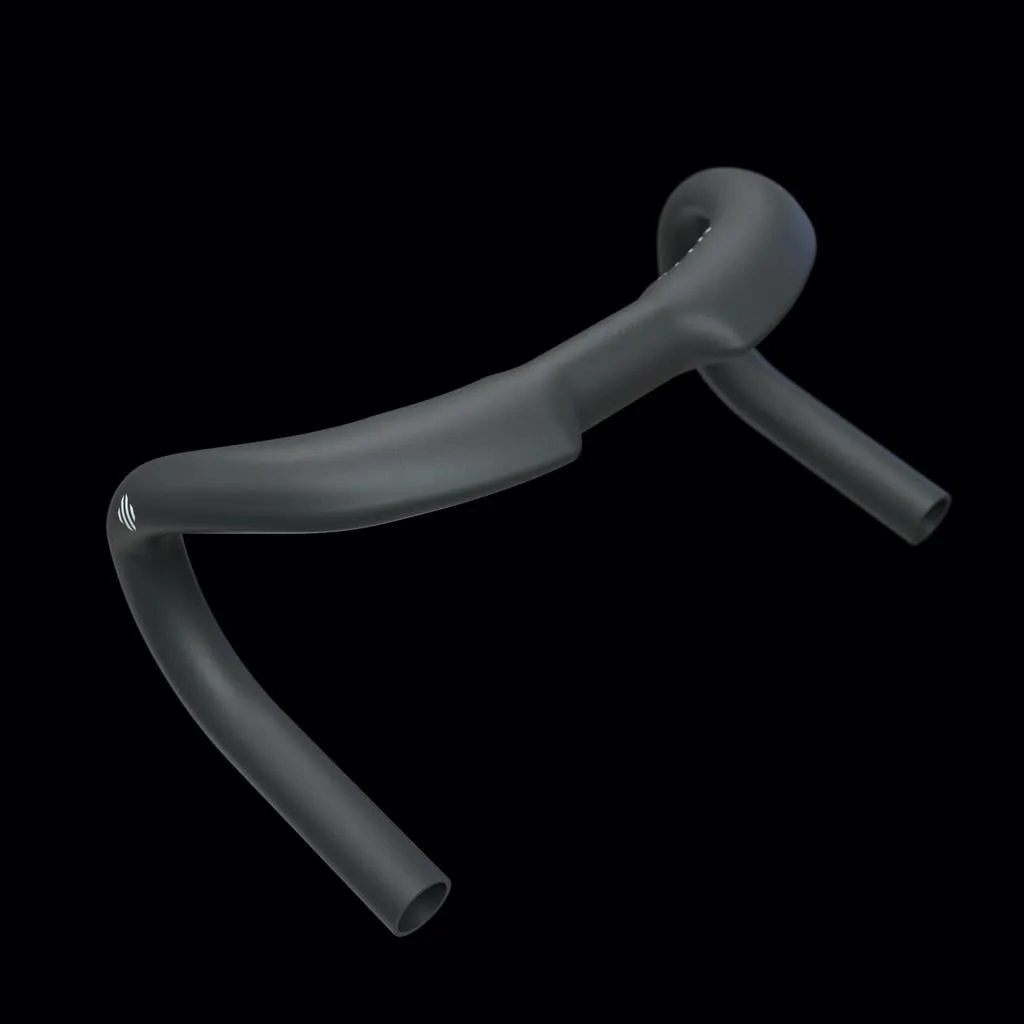

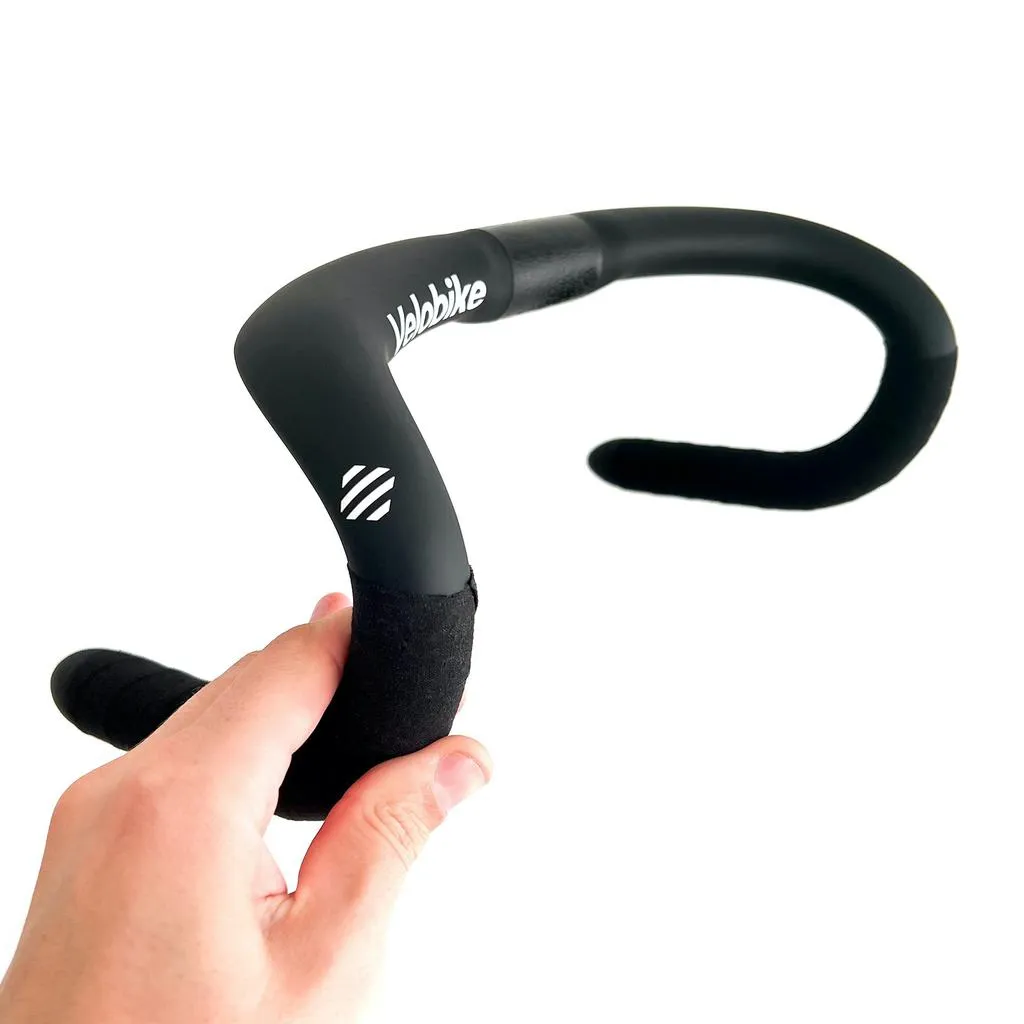

The Velobike Track Handlebar has been optimised to meet the strength requirements of the world’s top track sprinters.
These bars have been analysed using FEA (finite element analysis) software, to simulate how the handlebars will behave under various physical conditions and to help further refine the balance between the aero and bluff profiles in combination with the strength characteristics of the tubes. The resulting design has been fatigue and static overload tested to over double the ISO requirements for racing bicycle handlebars.

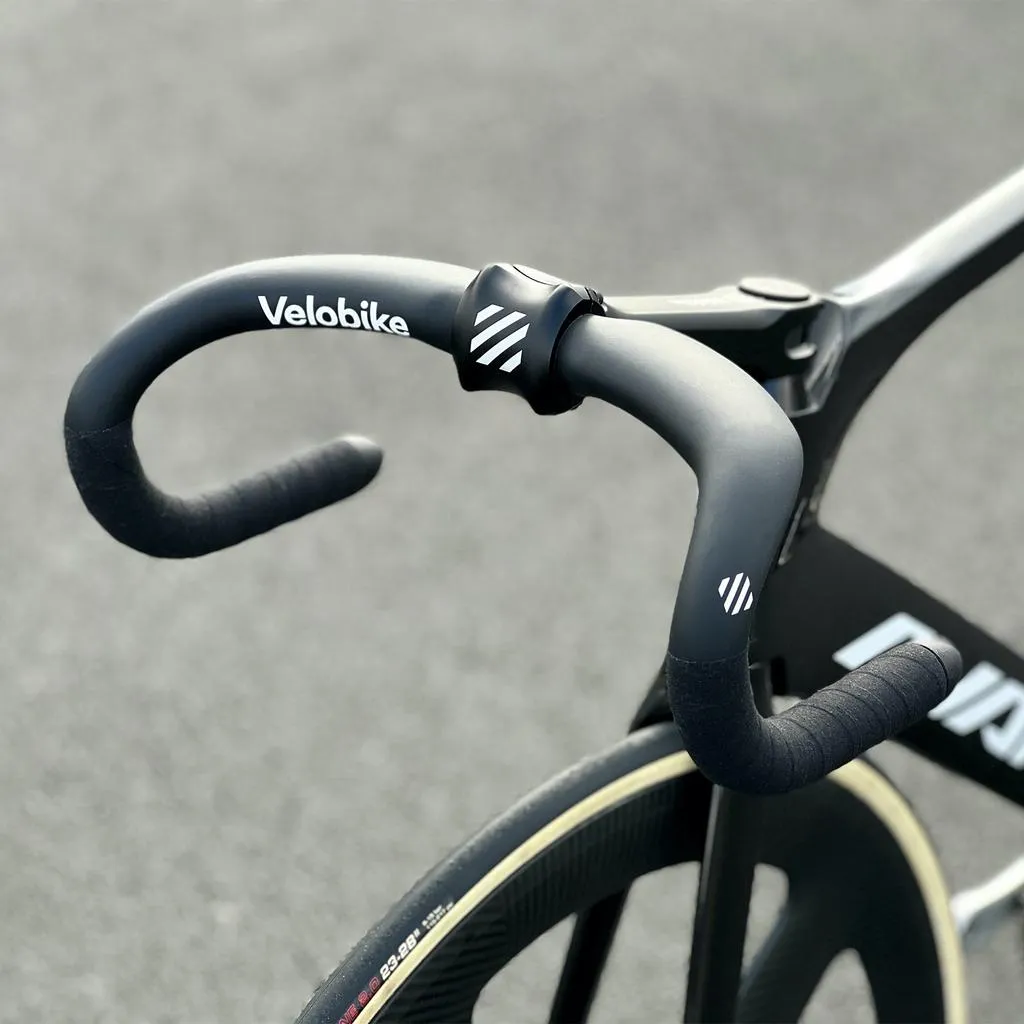

Sculpted drop transition for various grip positions through the drop and grip zones.
An oversize grip diameter of 27mm was selected to reduce the grip force required and reduce strain on hand and wrist joints especially during standing starts. This reduces the risk of injury while locking your upper body for maximum power transfer through the bike.

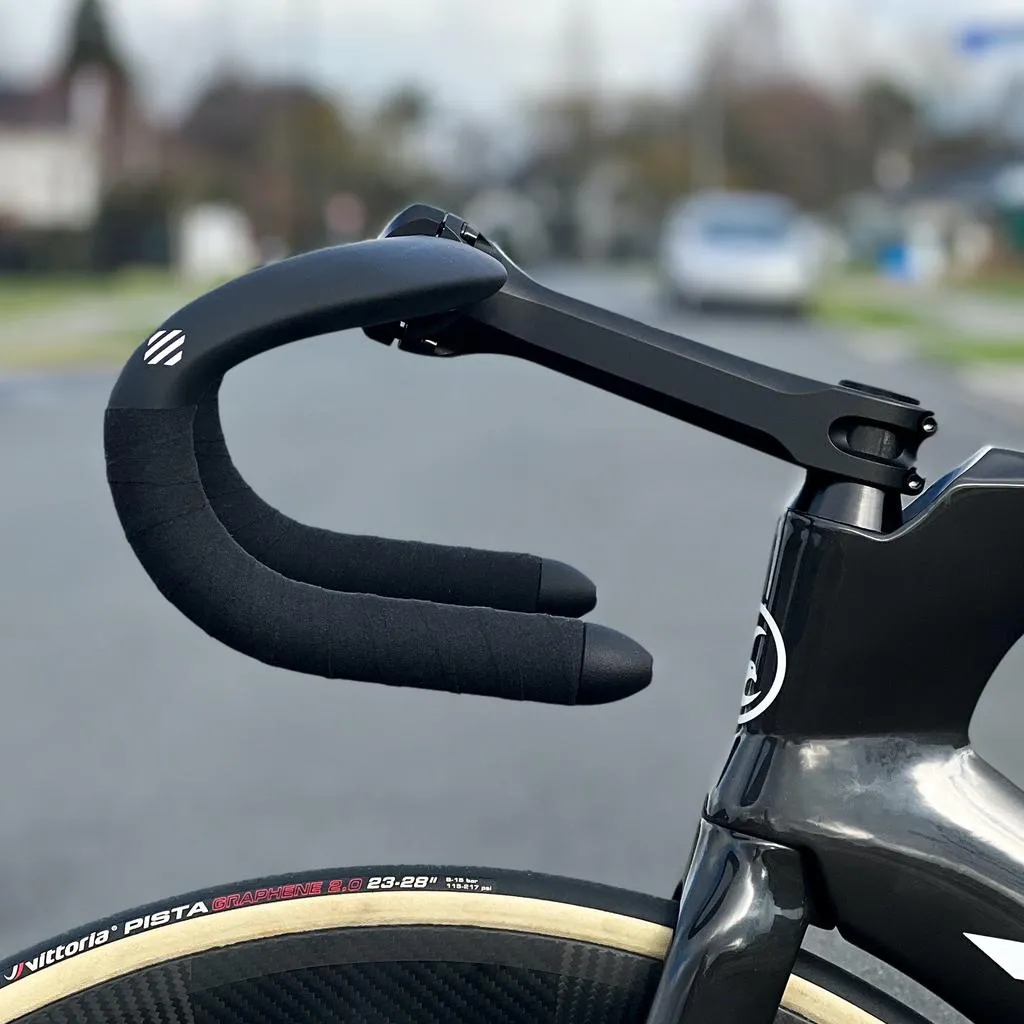

The handlebars includes a pair of Velobike Gen2 aero end plugs (size large) and are designed to match the bars perfectly.

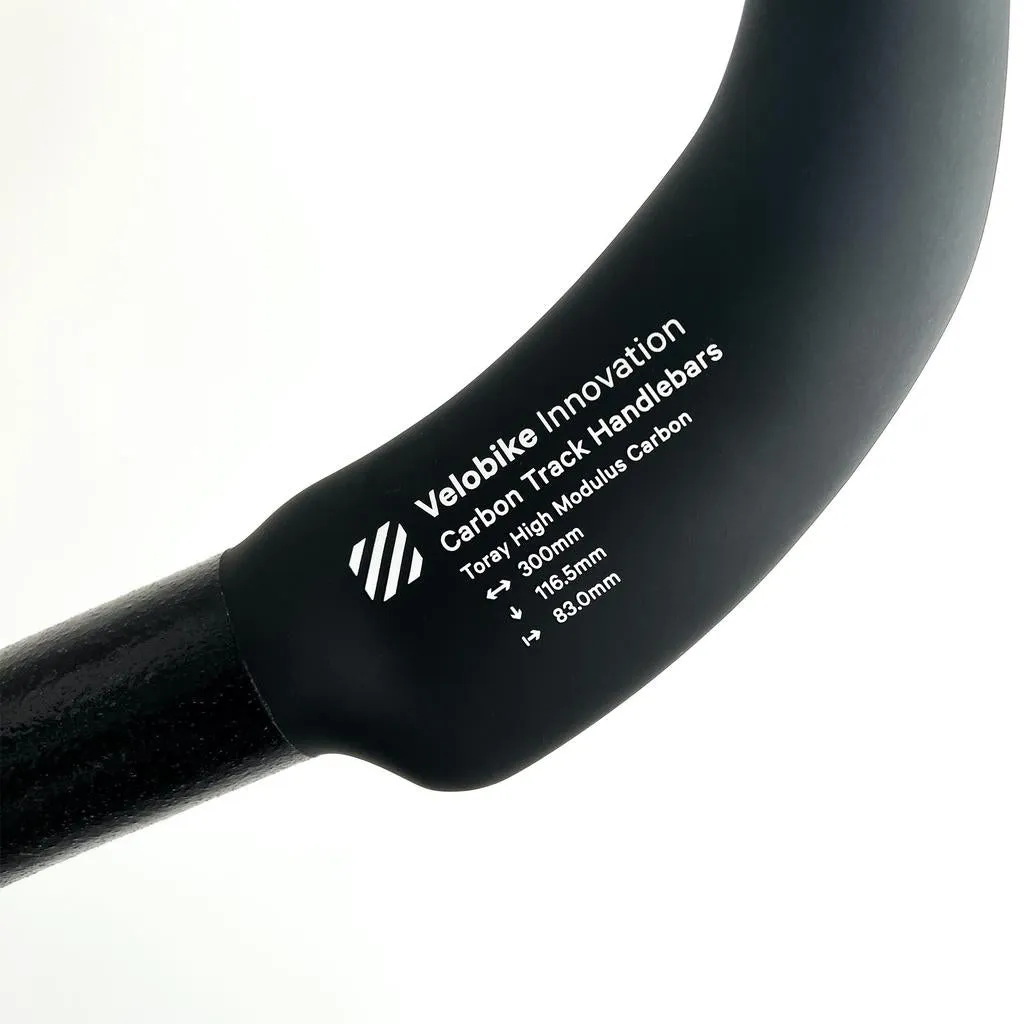

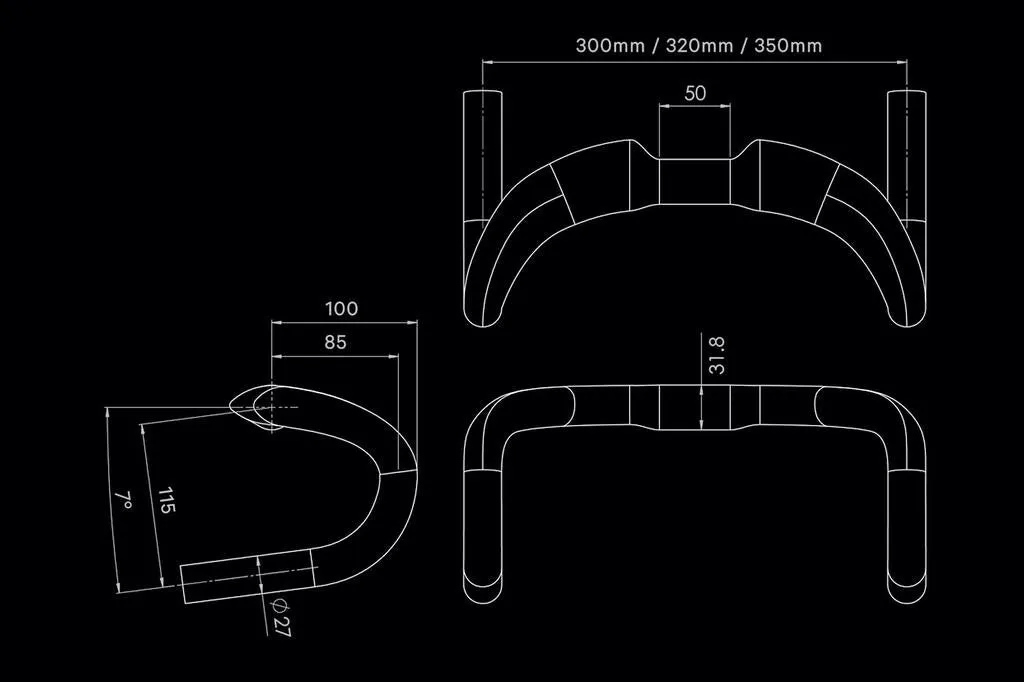

SPECIFICATIONS Material: Japanese Toray High Modulus Carbon Fibre Widths: 300mm, 320mm and 350mm widths (centre to centre) Grip Reach: 83mm (centre to centre) Total Reach: 96mm (centre to leading edge) Drop: 116.5mm (centre to centre) Grip Diameter: 27mm oversize grips Clamp Diameter: 31.8mm Grip Angle: 7° Testing Standard: 2x ISO strength requirements
INCLUDES Handlebar (QTY: 1) Bar Ends (QTY: 1 Pair)
